Spirobank II Advanced spirometer with oximetry option

Spirobank II Advanced spirometer with oximetry option

Description The SpiroBank II Advanced portable spirometer has a modern multi-purpose digital turbine that measures and records the most important spirometric parameters FVC, VC, IVC, IC ERV, PRE-POST BD. No calibration required.

Manufacturer

  • A complete Spirometer with Oximetry option, designed for all respiratory therapists.
  • Portable minilab for pulmonologists and respiratory therapists.
  • Real-time tests also available on PC, via Bluetooth and USB.
  • Long-life rechargeable battery (40 hours of operation).
  • Traffic lights on display for immediate test interpretation.

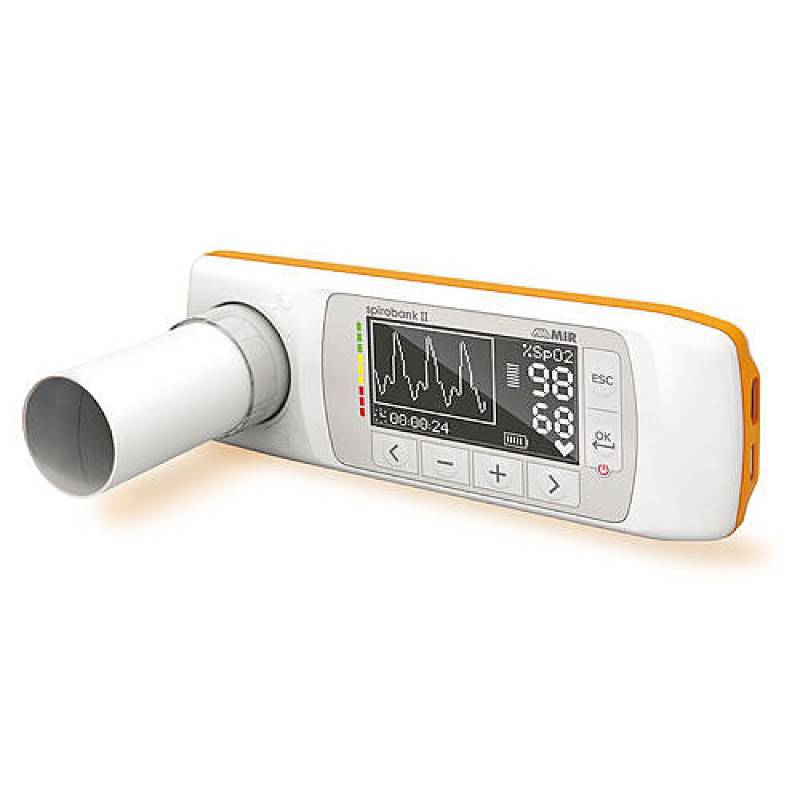

  • SpO2 and pulse rate (optional) directly on the display (including plethysmographic curve).
  • High resolution LCD screen with backlight.
  • Display numerical values ​​and graphics on the screen for immediate interpretation.
  • Direct analysis of results without connection to a computer.
  • Ability to connect to a PC via Bluetooth and USB.
    Memory for 10,000 spirometries or 900 hours of oximetry (optional).
  • With SpO2 and heart rate (default) directly on the screen (including plethysmographic curve).
  • Internal temperature sensor.

Spirometer:

  • FVC, FEV1, FEV1/ FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrap. Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/ FVC, FEV2, FEV2/ FVC, FEV3, FEV3/ FVC, FEV6, FEV1/ FEV6, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/ FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/ tI, tE/tTOT, MVV (measured), MVV (calculated).
  • Oximeter (optionally): Spot test (SpO2, BPM) in real time και 6MWT, Sleep Test, 24h Holter σε PC-mode (calculated).



winspiroPRO software:

  • Report logs with multiple print categories.
  • Complete set of parameters including FVC, VC / IVC, MVV, POST-BD & Bronchial Challenge test.
  • Flow / Volume loop and Volume / Time curve in real time with comparative PRE / POST.
  • Graphic display of SpO2, heart rate & statistical analysis of desaturation. events.
  • Special pediatric software for inhalations / exhalations.

The packaging includes: Carrying case, reusable turbine, USB cable, nose clip, finger probe (optional with oximeter), battery charger, thermal paper roll, WinSpiro Pro software and user manual.

Spirobank II Advanced is a medical device with a CE marking.
